Leaf Spring Shackle Angle. And i would have to move the pin to bring the axle back. Joined aug 23, 2021 · 5 posts.
Also, longer springs are softer, and therefore better. 1, the body/frame gets lowered. A rearward facing shackle does lose you a. Be the first to review this product. Springs bottom out easily over bumps. The leaf packs, or leaf springs, position and center the axle under the vehicle. Shop our new shackle leaf spring inventory today! Multiply the length in inches by 0.68, this will give you the. Adding on to what rob said, 1) measure the welded on eyes on the frame.
If So, You Can Accomplish Two Things By Raising The Front Leaf Spring Mount.
The rear shackles should be mounted exactly parallel to the angle of the leaf spring (when viewed from overhead) to prevent bind. The leaf packs, or leaf springs, position and center the axle under the vehicle. Long slip drivelines can be expensive, sloppy, and heavy. Theses are the lightest springs made by caltrac for this setup. Measure the entire length of the trailer from the outer end of the coupler to the very back end of the trailer in inches. I then disconnected the leaf springs from the differential housing and tried jacking up one of the leaf spring with a bottle jack and the once again the maximum angle of the. Discussion starter · #1 · oct 21, 2013. You can't just make the shackle angle anything you want. Adding on to what rob said, 1) measure the welded on eyes on the frame.
2, you gain anti squat. Sorry i forgot to mention that it is a double eye spring, so the other end is fixed. 2) it decreases castor angle of the front axle affecting the steerings stability at high. This will give you the recommended. Hello, i'm working on an 83 cj7 and noticed the rear driver's side shackle is parallel to the ground and touching the frame. Jack the car up 1 from normal ride height. They also support the vehicle’s weight, since these are a primary component of the suspension. I learned so much from making this episode. Joined aug 23, 2021 · 5 posts.
Be The First To Review This Product.

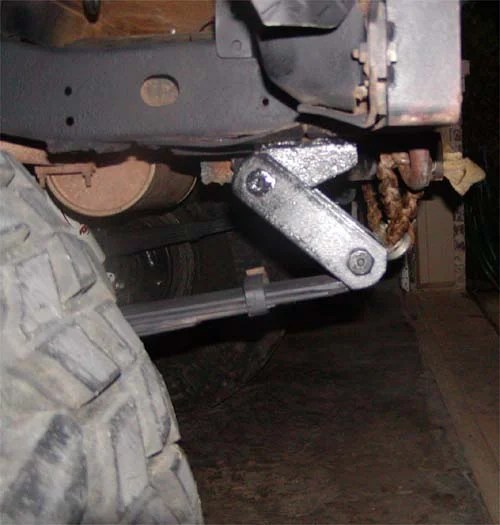

Although they are a small. Leaf springs & suspension authority since 1965! Leaf spring shackle angle issue. Personally, i prefer the sliders. The rear spring hanger mounting bolt hole should be 25 from the center of your front mounting bolt hole. 1, the body/frame gets lowered. Soft ride handling on corners. Also, longer springs are softer, and therefore better. When you accelerate, the leaf spring distorts, it's going to pull the shack.
1) It Rotates The Axle Down At The Shackle Side Of The Spring.
Just make sure they were originally welded on the same distance apart. And i would have to move the pin to bring the axle back. Slip lengths of 12+ are not uncommon for the front axle of a leaf sprung rig. Shop our new shackle leaf spring inventory today! Discussion starter · #1 · aug 23,. Discussion in 'the hokey ass message board' started by naes, mar 20, 2012. The shackles allow the leaf springs to change in length as they compress and tighten. As you can see the shackle angle is very low which has several negative effects: This ease of compression improves ride.
